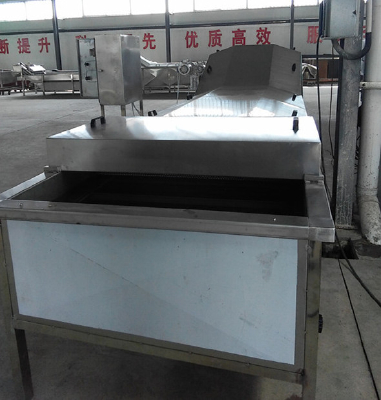

BSJ series of sterilization, cooling machine is our company to absorb foreign advanced technology, combined with the domestic food, beverage, pharmaceutical and other industries of the production process needs to develop a successful set of sterilization, cooling and one of the new products. This series of sterilization, cooling machine is made of high quality 304 stainless steel, advanced control meter, handsome in appearance, operation and maintenance is convenient wait for a characteristic, and the indigenous (sterilization pool) compared to low labor intensity, little manpower, high degree of automation, temperature can be in 98 DEG C in automatic control, upper and lower water temperature difference is small, the quality of the products is easy to control. This product is in full compliance with HACCP, GMP certification requirements, health and efficient, is the ideal equipment for the food processing industry.

In food, beverage, pharmaceutical and other industries, demand for water sterilization of some packaging products. Is packaged products on the speed of the stainless steel mesh belt, under the action of driving belts in order into the sterilization box body, through "high temperature water as medium sterilization, another transmission belt into the cooling tank in uniform cooling, so as to achieve the required products sterilization. The series of equipment for continuous operation, has been sterilized packaging products are continuously fed into the next production process.

Three, technical parameters:

sterilization time

10-40min

sterilization temperature

65 degree -95 adjustable

Steam pressure

1-4kg

Processing capacity

Design according to user's requirement

Cooling mode

Normal temperature or forced ice water

To carry on the speed

Stepless speed regulation

Band width

500-1500mm

power

Room temperature cooling

Gas consumption

0.5-1.0m3/h

Power Supply

380V50HZ
